Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the lower crash pad.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

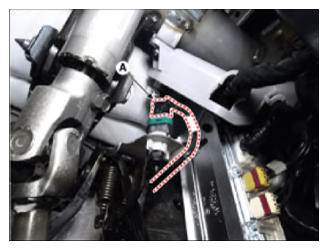

  3. Disconnect the stop lamp switch connector (A).
    G14424009Courtesy of HYUNDAI MOTOR AMERICA

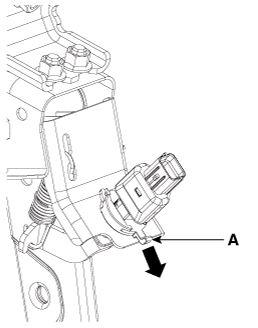

  4. Pull the locking plate (A) as indicated by the arrow.
    G14424010Courtesy of HYUNDAI MOTOR AMERICA

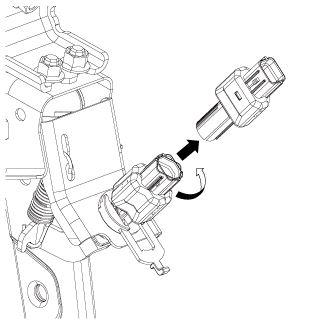

  5. Turn stop lamp switch (A) 45° counterclockwise and remove it.
    G14424011Courtesy of HYUNDAI MOTOR AMERICA
  6. Inspect a removed stop lamp switch along the below procedures.
    1. Confirm a normal connection with terminal part
      • A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
      G14424012Courtesy of HYUNDAI MOTOR AMERICA
    2. Perform the inspection of parts resistance
      G14424013Courtesy of HYUNDAI MOTOR AMERICA
      Resistance (Ω) 3-4 1-2
      Non rod protruded
      (switch turned OFF)      		 Infinite 0
      Rod protruded
      (switch turned ON)      		 0 Infinite
