Repair Procedures: Removal: Battery

Turn ignition switch OFF.

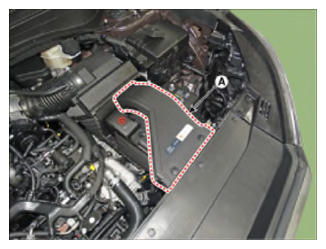

Remove the air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA

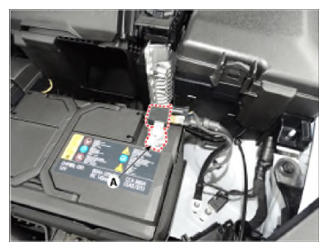

Disconnect the battery negative (-) terminal (A).
Battery negative (-) terminal tightening nut:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

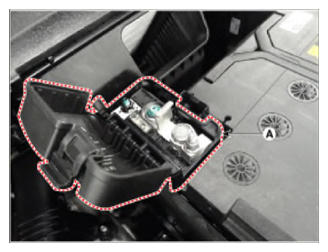

Disconnect the battery positive (+) terminal (A).
Battery negative (-) terminal tightening nut:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the insulation pad.
Remove the battery mounting bracket (B) after loosening the mounting bolt (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the battery.
