Battery Terminal

  1. Move back and forth to check if the battery terminals (A) are loose or corroded. If the terminals are corroded, clean them.

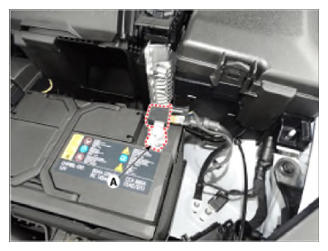

    G14423951Courtesy of HYUNDAI MOTOR AMERICA

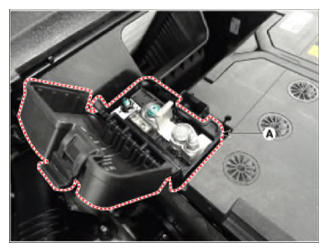

    G14423952Courtesy of HYUNDAI MOTOR AMERICA

    If battery positive connection is loose, disconnect ground (GND) cable first before attempting to remove or tighten plus connection, to prevent personal injury.

  2. If the battery clamp on battery positive (+) terminal is not seated securely:
    1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
    2. Tighten battery clamp (A) on battery positive (+) terminal

      Battery positive (+) terminal:

      7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

      G14423953Courtesy of HYUNDAI MOTOR AMERICA
  3. If the battery clamp on battery negative (-) terminal is not seated securely:
    1. Tighten battery clamp (A) on battery negative (-) terminal.

      Battery negative (-) terminal:

      7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

      G14423954Courtesy of HYUNDAI MOTOR AMERICA
