Components & Components Location: Components: AWD

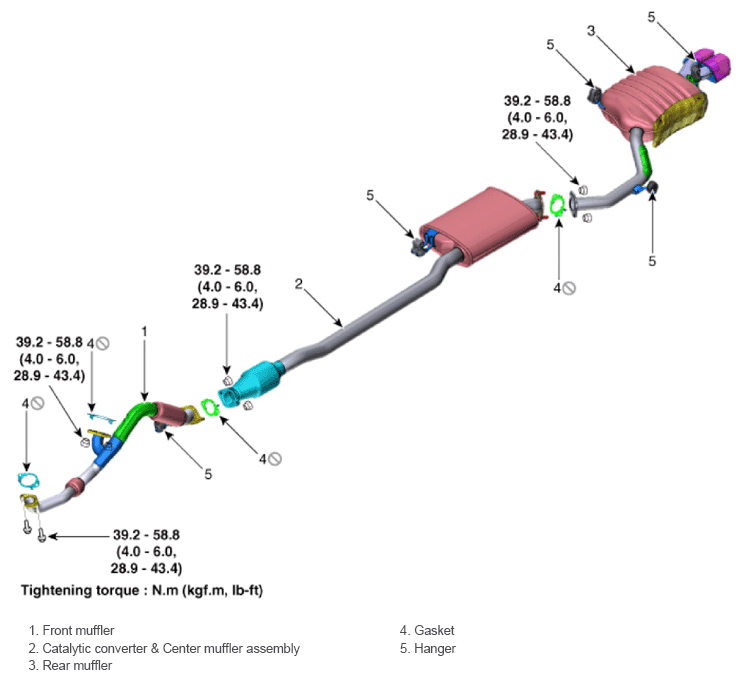

Fig 1: Muffler And Catalytic Converter Components Location With Torque Specifications (AWD)

G14423527

Courtesy of HYUNDAI MOTOR AMERICA
