Home >> Hyundai >> 2021 >> Palisade Calligraphy, FWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Cylinder Block >> Components & Components Location >> Components

Components & Components Location: Components

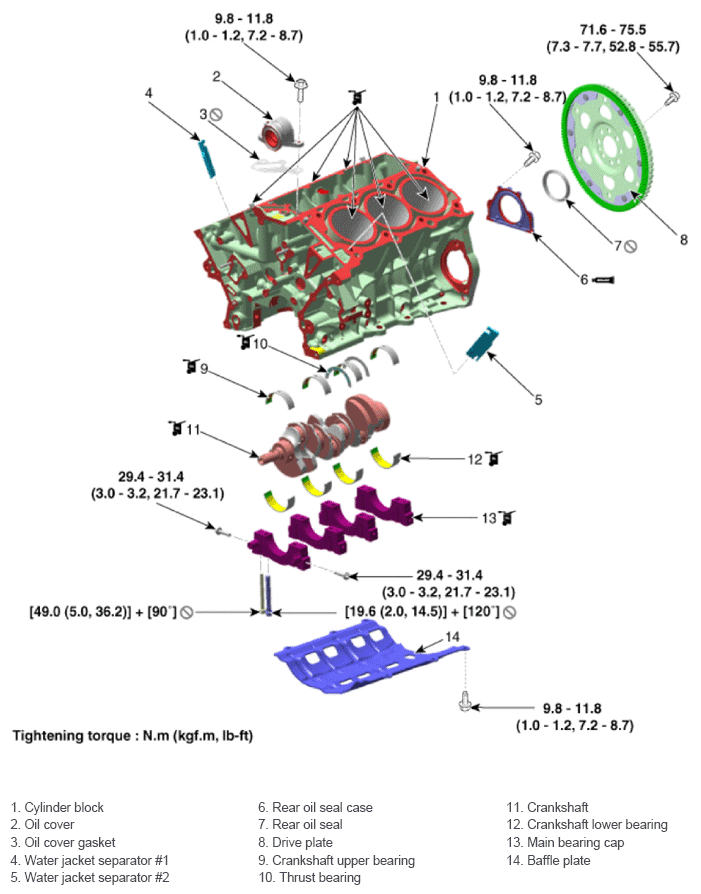

Fig 1: Cylinder Block Components Location With Torque Specifications (1 Of 2)
G14423356Courtesy of HYUNDAI MOTOR AMERICA

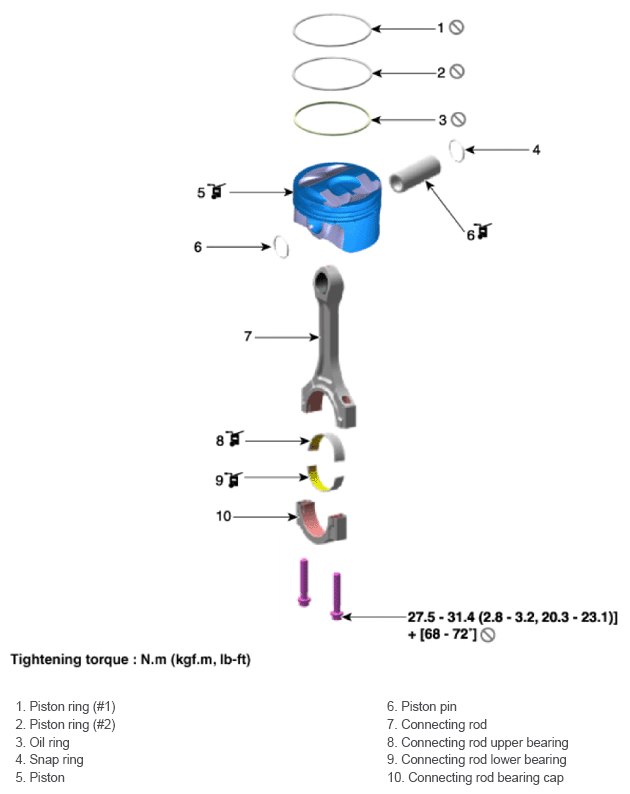

Fig 2: Cylinder Block Components Location With Torque Specification (2 Of 2)
G14423357Courtesy of HYUNDAI MOTOR AMERICA
