Removal and Installation
CAUTION:
- Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Drain the coolant.
(Refer to Cooling System - "COOLANT ")
- Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
- Remove the surge tank.
(Refer to Intake and Exhaust System - "SURGE TANK ")
- Remove the intake manifold.
(Refer to Intake And Exhaust System - "INTAKE MANIFOLD ")
- Remove the delivery pipe.
(Refer to Engine Control/Fuel System - "DELIVERY PIPE ")
- Remove the water temperature control assembly and water center pipe.
(Refer to Cooling System - "WATER TEMPERATURE CONTROL ASSEMBLY , and WATER CENTER PIPE ")

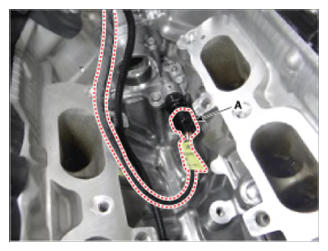

- Disconnect the oil pressure sensor connector (A).

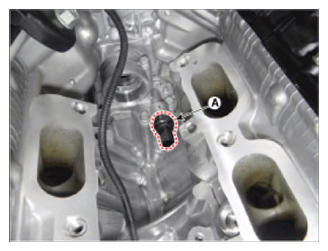

- Remove the oil pressure sensor (A).
Tightening torque:
14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb.ft)
- Install in the reverse order of removal.
