Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Remove the rear-LH wheel, tire, and the inner wheel house.

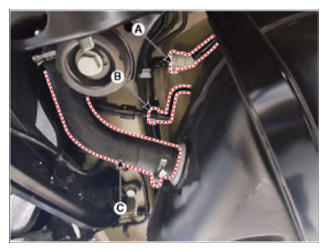

  4. Disconnect the fuel filler hose (B) and leveling hose quick connector (A).
  5. Disconnect the ventilation hose quick connector (B).
    G14424099Courtesy of HYUNDAI MOTOR AMERICA

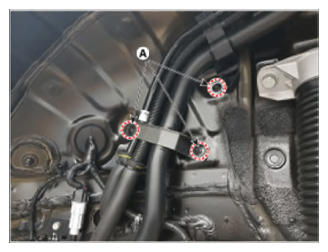

  6. Remove the filler-neck assembly from the vehicle after removing the bracket mounting nuts (A).
    G14424100Courtesy of HYUNDAI MOTOR AMERICA
    G14424101Courtesy of HYUNDAI MOTOR AMERICA
