Removal and Installation
CAUTION:
- Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
- Drain the engine coolant.
(Refer to "COOLANT ")
- Remove the cooling fan assembly.
(Refer to "COOLING FAN ")
- Remove the A/C condenser bracket (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

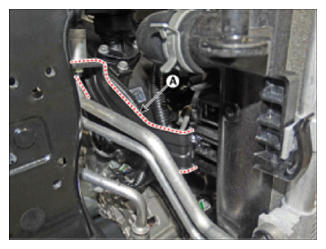

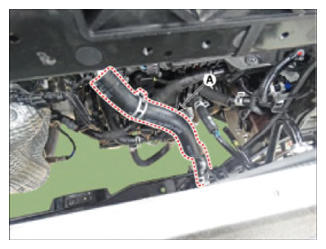

- Disconnect the radiator lower hose (A).

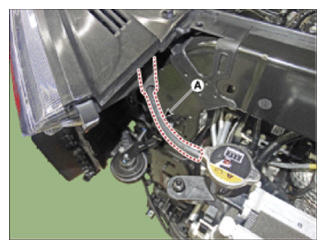

- Disconnect the over flow hose (A).
- Separate the A/C condenser from the radiator assembly.

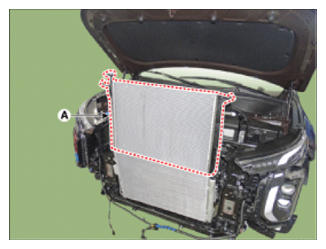

- Remove the radiator assembly (A) from the vehicle.
- Install in the reverse order of removal.
- Fill the radiator with coolant.
(Refer to "COOLANT ")
- Start engine and check for leaks.
- Recheck the coolant level.
