Repair Procedures: Removal: 2WD
- Turn the ignition switch OFF and then disconnect the negative (-) battery cable.
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the rear wheel and tire (A) from the rear hub.
Tightening torque:
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:- Be careful not to damage the hub bolts when removing the rear wheel and tire (A).
- Remove the rear brake caliper.
(Refer to Brake System - "REAR DISC BRAKE ")
- Remove the rear brake disc (A).

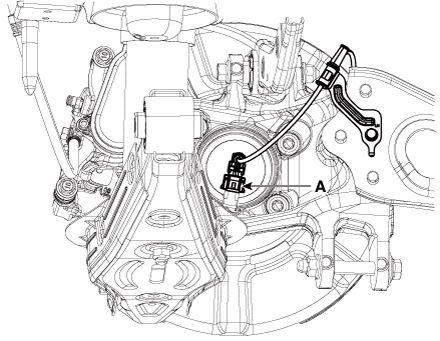

- Disconnect the rear wheel speed sensor connector (A).
- Remove the hub assembly and dust cover (A) after loosening the mounting bolts.
Tightening torque:
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)
