Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD ")

  3. Remove the side air vent duct [LH] (A).
    G14424701Courtesy of HYUNDAI MOTOR AMERICA

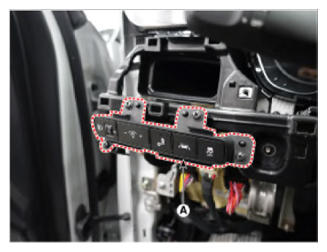

  4. Loosen the guide screw and then removing the ESP OFF switch (A).
    G14424702Courtesy of HYUNDAI MOTOR AMERICA

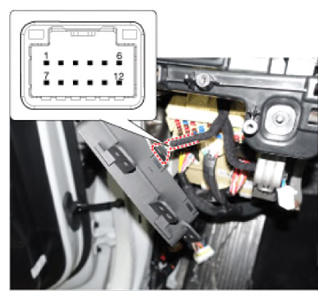

  5. Check for continuity between the terminals. If the continuity is not as specified, replace the ESP OFF switch.
    G14424703Courtesy of HYUNDAI MOTOR AMERICA
    G14424704Courtesy of HYUNDAI MOTOR AMERICA
