ESP Operation Mode: Notes
- STEP 1
The ESP analyzes the intention of the driver.
- STEP 2
It analyzes the movement of the ESP vehicle.
- STEP 3
The HECU calculates the required strategy, then actuates the appropriate valves and sends torque control requests via CAN to maintain vehicle stability.

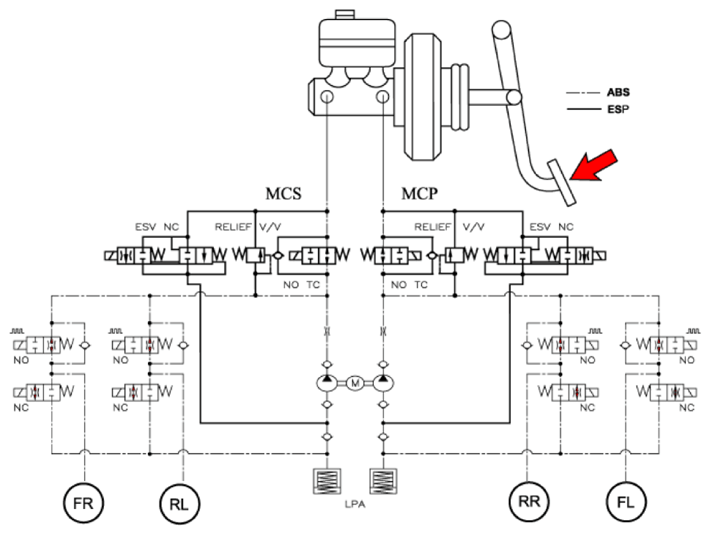

ESP Hydraulic System Diagram
- ESP Non-operation: Normal braking.
Solenoid Valve Continuity Valve Motor Pump TC Valve IN (NO) OFF OPEN OFF OFF OUT (NC) OFF CLOSE - ESP operation
| Solenoid Valve | Continuity | Valve | Motor Pump | TC Valve | |
|---|---|---|---|---|---|
| Understeering (Only inside of rear wheel) |
IN (NO) | OFF | OPEN | ON | ON |
| OUT (NC) | OFF | CLOSE | |||
| Oversteering (Only outside of front wheel) |
IN (NO) | OFF | OPEN | ||
| OUT (NC) | OFF | CLOSE | |||
