Repair Procedures: Replacement

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Remove the front seat assembly.
(Refer to "FRONT SEAT ASSEMBLY ")

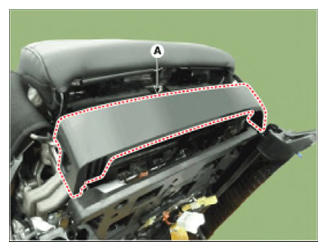

Loosen the mounting screws and remove the front seat shield front cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

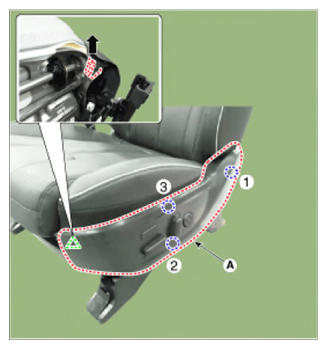

Remove the front seat outer shield cover (as shown in illustration below).
1. Using a screwdriver or remover and remove the rear hook (1).
2. Remove the lower hook (2) by pulling it aside
3. Remove the upper steel clip (2) and the hook (3) by pulling them aside.
4. Remove the front seat outer shield cover (A) by pulling it forward as shown by the arrow.
CAUTION:
- Front Seat Outer Shield When removing the cover, pay attention to the removal order and direction.
- Be careful not to damage the hooks and brackets.
Courtesy of HYUNDAI MOTOR AMERICA

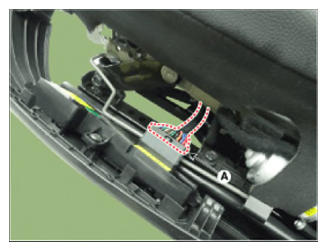

Press the lock pin and separate the front seat power switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips (or pin-type retainers).
