Interior 3 Antenna

  1. Disconnect the negative (-) battery terminal.

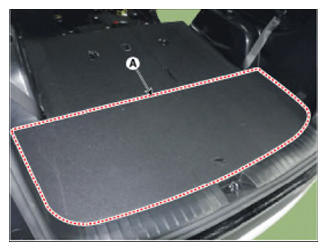

  2. Remove the luggage floor box mat (A).
    G14427241Courtesy of HYUNDAI MOTOR AMERICA

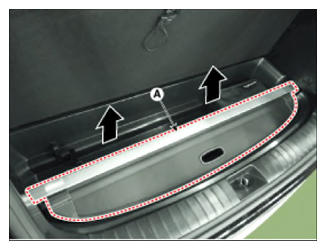

  3. Remove the cargo screen (A).
    G14427242Courtesy of HYUNDAI MOTOR AMERICA

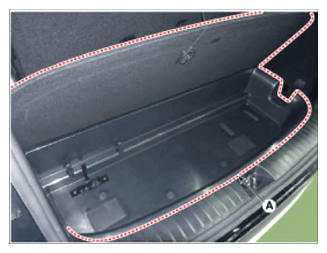

  4. Remove the luggage floor box (A) after loosening mounting screws.
    G14427243Courtesy of HYUNDAI MOTOR AMERICA

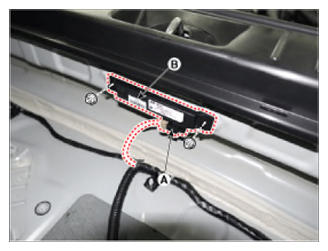

  5. Remove the interior 3 antenna (B) after loosening mounting screws and disconnecting the connector (A).
    G14427244Courtesy of HYUNDAI MOTOR AMERICA
