Interior 2 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the console rear complete assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

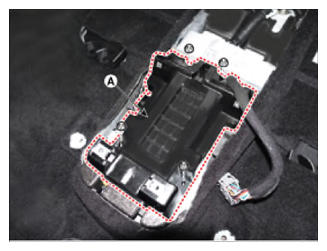

  3. Remove the console duct (A).
    G14427239Courtesy of HYUNDAI MOTOR AMERICA

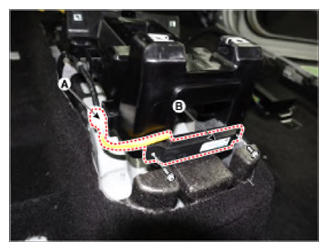

  4. Remove the interior 2 antenna (B) after loosening the mounting nuts (2EA) and disconnecting the connector (A).
    G14427240Courtesy of HYUNDAI MOTOR AMERICA
