Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING COVER ")

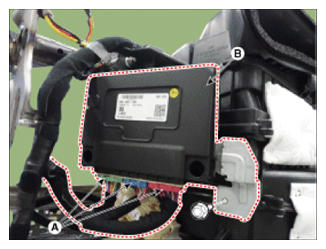

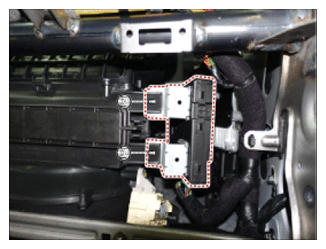

  3. Disconnect the connector (A) and then remove the IBU (B) after loosening mounting nuts.
    G14427772Courtesy of HYUNDAI MOTOR AMERICA
    G14427773Courtesy of HYUNDAI MOTOR AMERICA
