Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front console assembly.

    (Refer to Body - FLOOR CONSOLE ASSEMBLY ")

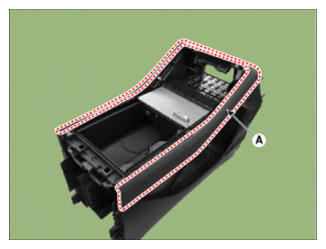

  3. Remove the front console garnish (A).
    G14427167Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

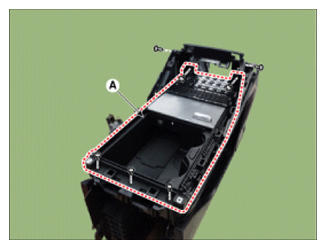

  4. Remove the front console tray assembly (A).
    G14427168Courtesy of HYUNDAI MOTOR AMERICA

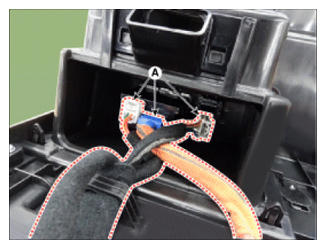

  5. Disconnect the connector (A).
    G14427169Courtesy of HYUNDAI MOTOR AMERICA

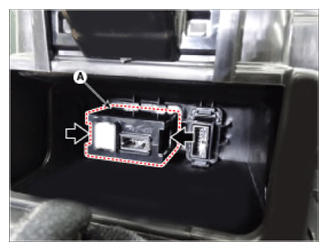

  6. Remove the USB (A) by pushing the fixed clip in the direction of the arrow as shown in illustration below.
    G14427170Courtesy of HYUNDAI MOTOR AMERICA
