Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal
  2. Remove the center fascia panel.

    (Refer to Body - "CENTER FASCIA PANEL ")

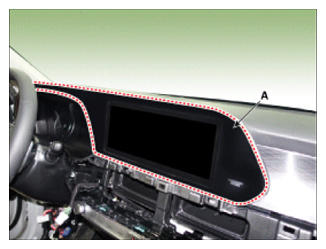

  3. Using a flat-head screwdriver, remove the monitor cover (A).
    G14427141Courtesy of HYUNDAI MOTOR AMERICA
  4. Loosen mounting screws and then remove the audio assembly (A).
    G14427142Courtesy of HYUNDAI MOTOR AMERICA

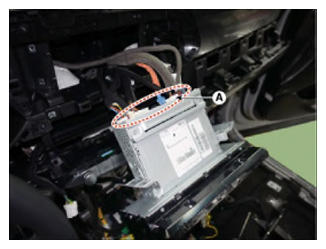

  5. Remove the audio head unit after disconnecting connectors (A).
    G14427143Courtesy of HYUNDAI MOTOR AMERICA
