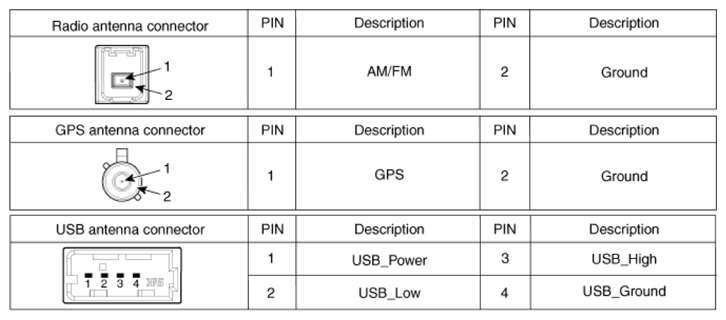

Connector Pin Information
| No | Connector A | Connector B |
|---|---|---|
| 1 | Rear left speaker (+) | - |
| 2 | Rear left speaker (-) | Mic (+) |
| 3 | - | - |
| 4 | - | - |
| 5 | - | Antenna power |
| 6 | Camera_Power | Illumination (+) |
| 7 | Camera_ Video | MM CAN High |
| 8 | - | - |
| 9 | - | - |
| 10 | - | Battery (+) |
| 11 | DTC | Battery (+) |
| 12 | Steering wheel remote | Ground |
| 13 | Front left speaker (+) | Ground |
| 14 | Front left speaker (-) | - |
| 15 | Front right speaker (-) | Mic (+) |
| 16 | Front right speaker (+) | - |
| 17 | - | - |
| 18 | - | - |
| 19 | - | Illumination (-) |
| 20 | Camera power_Ground | MM CAN Low |
| 21 | Camera video_Ground | - |
| 22 | - | ACC |
| 23 | - | - |
| 24 | - | - |
| 25 | - | - |
| 26 | Steering wheel remote ground | - |
| 27 | Rear right speaker (-) | - |
| 28 | Rear right speaker (+) | - |
| 29 | - | - |
| 30 | - | - |
| 31 | - | - |
| 32 | - | Ignition |
| 33 | Camera shield _Ground | - |
| 34 | - | - |
| 35 | - | - |
| 36 | - | |
| 37 | - | |
| 38 | - | |
| 39 | Speed |
