Repair Procedures: Inspection

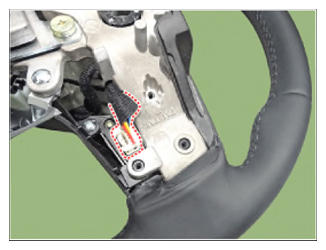

- Check for resistance between terminals in left switch position.
[Audio/Bluetooth]
Switch Connector terminal Resistance (± 3%) SEEK Up 1 - 6 430 Ω SEEK Down 1 - 6 1.1 kΩ MODE 1 - 6 2.11 kΩ MUTE 1 - 6 3.11 kΩ Volume up 1 - 6 4.61 kΩ Volume down 1 - 6 6.81 kΩ Voice 1 - 6 10.71 kΩ END 1 - 6 18.91 kΩ SEND 1 - 6 40.91 kΩ - Check for resistance between terminals in right switch position.
[Trip/Cruise]
| Switch | Connector terminal | Resistance (± 3%) |
|---|---|---|
| CANCEL | 2 - 6 | 390 Ω |
| SET (-) | 2 - 6 | 610 Ω |
| RES (+) | 2 - 6 | 910 Ω |
| Cruise ON/OFF | 2 - 6 | 1.38 kΩ |
| Cruise Mode | 2 - 6 | 2.13 kΩ |
| Smart Cruise | 2 - 6 | 3.63 kΩ |
| Trip Group | 1 - 6 | 390 Ω |
| Trip Up | 1 - 6 | 610 Ω |
| Trip Down | 1 - 6 | 910 kΩ |
| Trip OK | 1 - 6 | 1.38 kΩ |
