Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad garnish.

    (Refer to Body - "CRASH PAD GARNISH ")

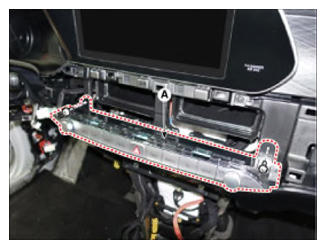

  3. Remove the audio keyboard unit (A) after loosening mounting screws.
    G14427163Courtesy of HYUNDAI MOTOR AMERICA

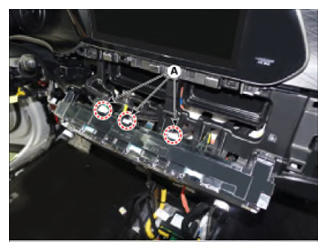

  4. Disconnect the connector (A) and then remove the AVN keyboard unit.
    G14427164Courtesy of HYUNDAI MOTOR AMERICA
