Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

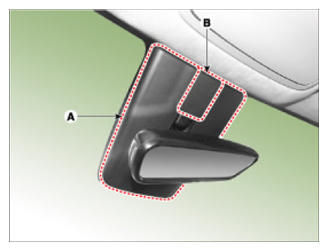

  2. Remove the mirror wiring cover (A) and rain sensor cover (B).
    G14427901Courtesy of HYUNDAI MOTOR AMERICA

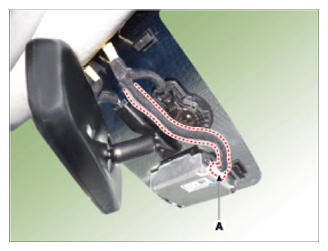

  3. Disconnect the front view camera connector (A).
    G14427902Courtesy of HYUNDAI MOTOR AMERICA

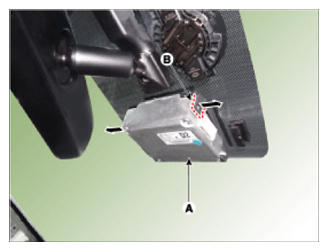

  4. Separate the fixed points (B) of coupler, remove the front view camera (A).
G14427903Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
  • When separate the fixed points, be careful not to damage it.
