Repair Procedures: Removal
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Be careful not to scratch the door trim and other parts.
- Disconnect the negative (-) battery terminal.
- Remove the crash pad center panel. (Refer to Body - "CRASH PAD CENTER PANEL ")

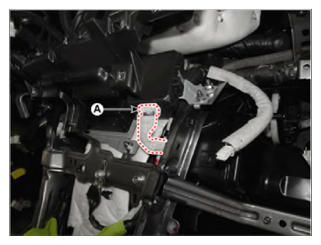

- Disconnect the IAU connector (A).

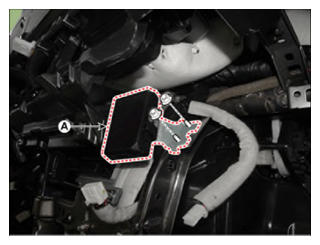

- Remove the IAU (A) after removing the nuts.
