Repair Procedures: Removal
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the front console assembly.
(Refer to Body - FLOOR CONSOLE ASSEMBLY ")

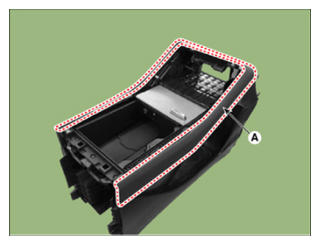

- Remove the front console garnish (A).CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

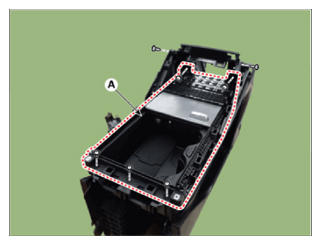

- Remove the front console tray assembly (A).

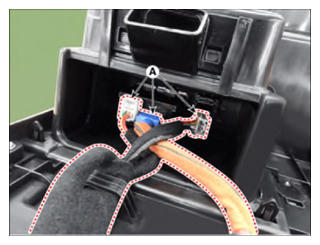

- Disconnect the connector (A).

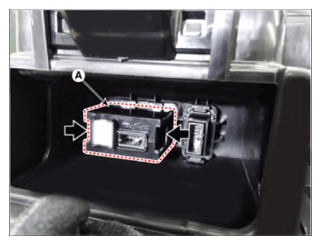

- Remove the USB (A) by pushing the fixed clip in the direction of the arrow as illustration below.
