Repair Procedures: Removal
WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the crash pad air vent [RH].
(Refer to Body - "CRASH PAD AIR VENT ")
- Remove the crash pad lower garnish [LH].
(Refer to Body - "CRASH PAD GARNISH ")

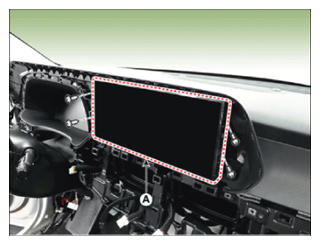

- Remove the front center fascia panel (A).

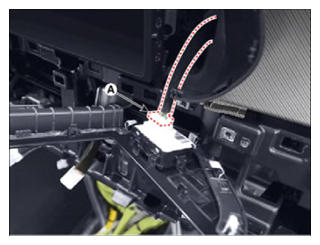

- Disconnect the rear occupant alert connector (A).

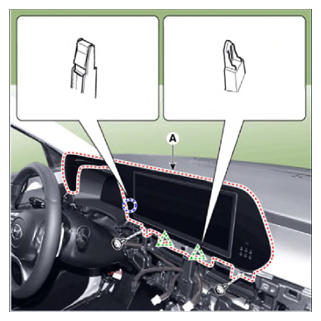

- Remove the AVN head unit (A) after loosening mounting screws.

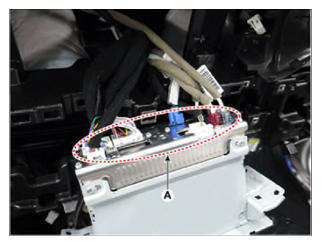

- Disconnect the AVN head unit connectors (A).
