Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

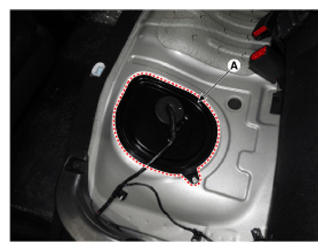

  3. Remove the fuel pump service cover (A).
    G12596779Courtesy of HYUNDAI MOTOR AMERICA

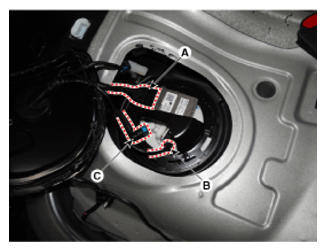

  4. Disconnect the fuel pump control module connector (A).
  5. Disconnect the fuel pressure sensor connector (B).
  6. Disconnect the fuel feed tube quick-connector (C).
    G12596780Courtesy of HYUNDAI MOTOR AMERICA

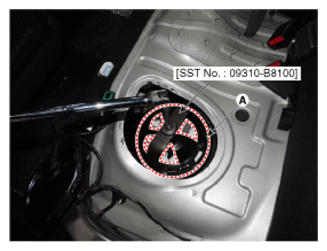

  7. Remove the locking ring (A) by using the special service tool [No.: 09310-B8100].
    NOTE:
    • When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
    • When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.
    G12596781Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the fuel pump from the fuel tank.
    G12596782Courtesy of HYUNDAI MOTOR AMERICA
