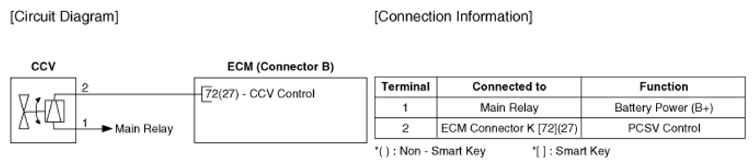

Home >> Hyundai >> 2021 >> Kona SEL Plus, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Canister Close Valve (CCV) >> Schematic Diagrams >> Circuit Diagram >> Notes
