Repair Procedures: Replacement: Removal
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- Use seat covers to avoid damaging any surfaces.
- Remove the rear pillar trim.
(Refer to Interior Trim - "REAR PILLAR TRIM ")

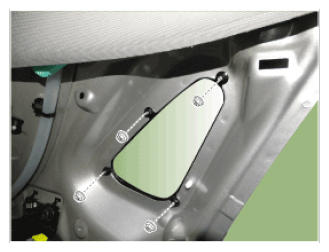

- Loosen the quarter fixed glass mounting nuts.
Tightening Torque:
3.9 ~ 4.4 N.m (0.4 ~ 0.5 kgf.m, 2.9 ~ 3.3 lb-ft)
- Cut out the quarter fixed glass sealant using the utility knife.NOTE:
- Do not scrape down to the painted surface of the body as bonding strength may get diminished on damaged paint.
Information
- Remove The Rubber Dam And Fasteners From The Body.
- Mask off surrounding surfaces before painting.

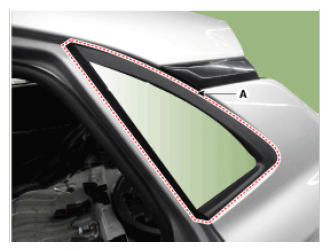

- Remove the quarter fixed glass (A).
