Smart Key Code Saving

  1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
    G12605514Courtesy of HYUNDAI MOTOR AMERICA

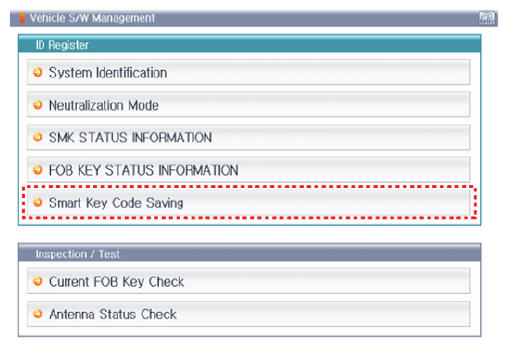

  2. Select the vehicle model and then do "Smart Key Code Saving".
    G12605515Courtesy of HYUNDAI MOTOR AMERICA

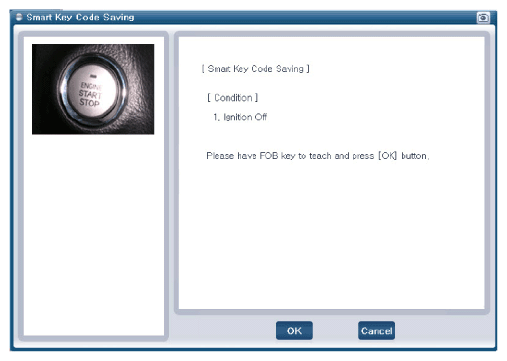

  3. After selecting "Smart Key Teaching" menu, push "Enter" key, then the screen will be displayed in image below.
    G12605516Courtesy of HYUNDAI MOTOR AMERICA
  4. After having the teaching smart key, push "ENTER" key.

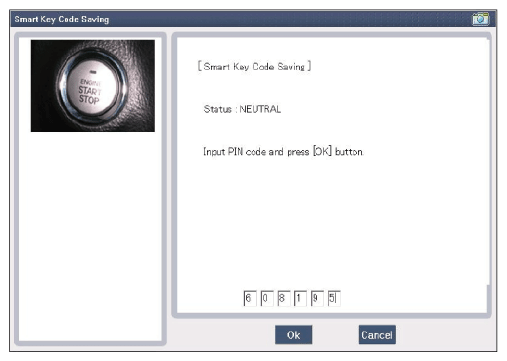

  5. Input the "Pin Code" for first key teaching.
    G12605517Courtesy of HYUNDAI MOTOR AMERICA

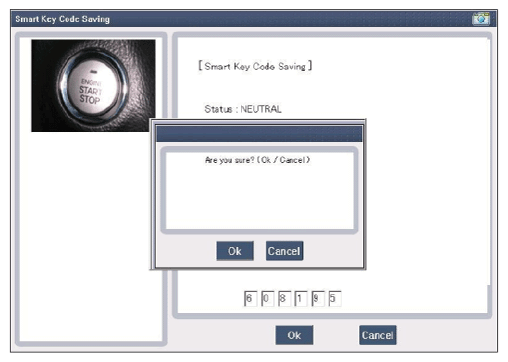

    G12605518Courtesy of HYUNDAI MOTOR AMERICA
  6. Press the SSB with smart key within 5 sec after pressing "OK".
    G12605519Courtesy of HYUNDAI MOTOR AMERICA

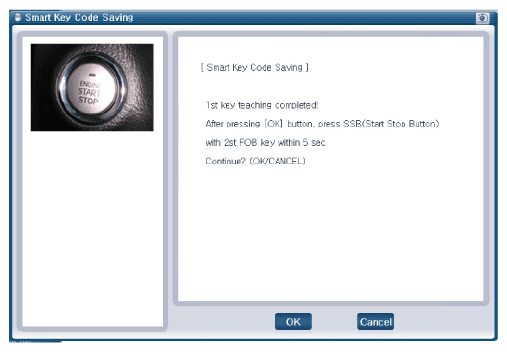

  7. Confirm the message "First Key Teaching Completed".
    G12605520Courtesy of HYUNDAI MOTOR AMERICA
  8. Press the SSB with smart key within 5 sec after pressing "OK".
    G12605521Courtesy of HYUNDAI MOTOR AMERICA

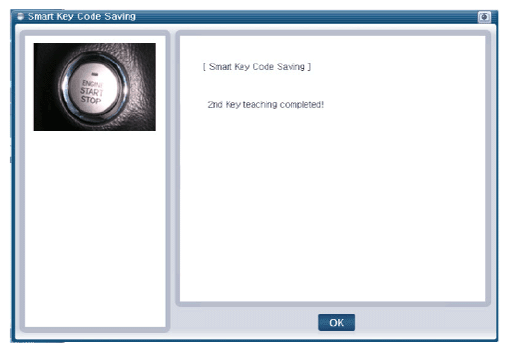

  9. Confirm the message "Second Key Teaching Completed".
    G12605522Courtesy of HYUNDAI MOTOR AMERICA

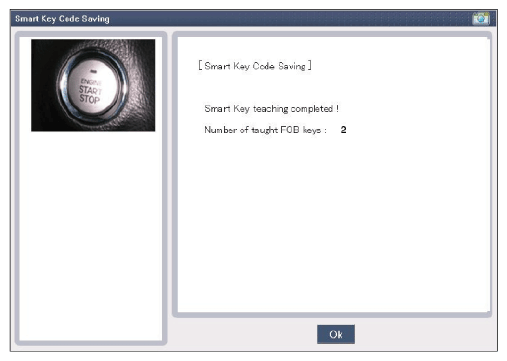

  10. Then the screen will be displayed in image below when key teaching process is completed.
    G12605523Courtesy of HYUNDAI MOTOR AMERICA
