Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

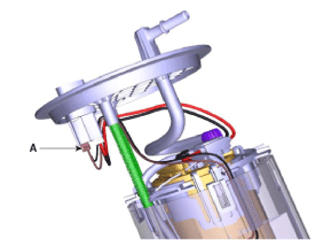

  2. Disconnect the fuel sender connector (A).
    G12606983Courtesy of HYUNDAI MOTOR AMERICA
  3. Press the fixing hook (A) with a driver and then remove fuel sender (B) in the arrow direction.
    G12606984Courtesy of HYUNDAI MOTOR AMERICA
    G12606985Courtesy of HYUNDAI MOTOR AMERICA
