Home >> Hyundai >> 2021 >> Kona SE, FWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System (Abs) >> Schematic Diagrams >> Notes

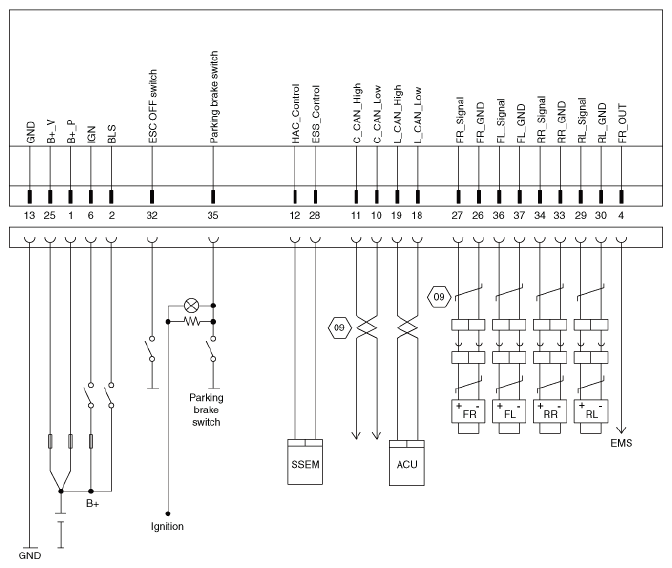

Schematic Diagrams: Notes

G12602749Courtesy of HYUNDAI MOTOR AMERICA
