ABS Control

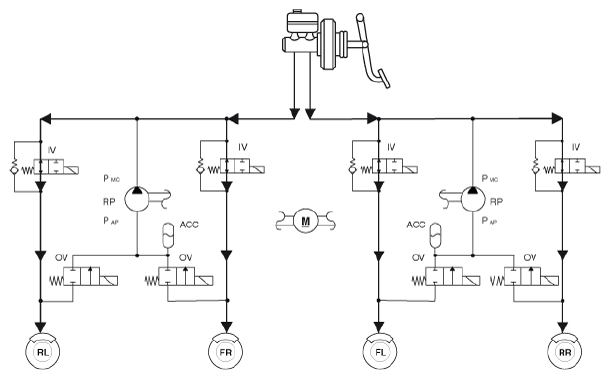

Normal Braking without ABS

	Inlet Valve (IV)	Outlet Valve (OV)	Return Pump
Operation	Open	Close	OFF

G12602744

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

IV: Inlet Valve
OV: Outlet Valve
RL: Rear left wheel
FR: Front right wheel
FL: Front left wheel
RR: Rear right wheel
RP: Return pump

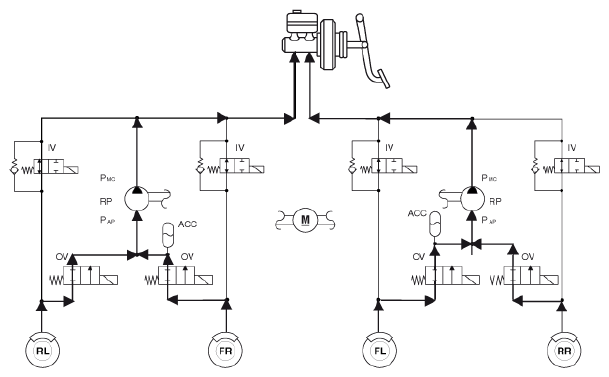

Decrease Mode

	Inlet Valve (IV)	Outlet Valve (OV)	Return Pump
Operation	Close	Open	ON (Motor speed control)

G12602745

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

IV: Inlet Valve
OV: Outlet Valve
RL: Rear left wheel
FR: Front right wheel
FL: Front left wheel
RR: Rear right wheel
RP: Return pump

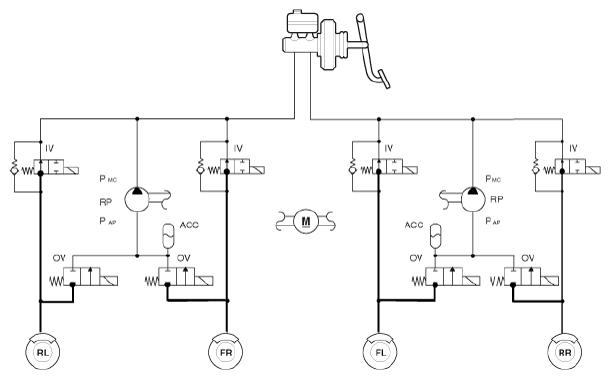

Hold Mode

	Inlet Valve (IV)	Outlet Valve (OV)	Return Pump
Operation	Close	Close	ON (Motor Speed Control)

G12602746

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

IV: Inlet Valve
OV: Outlet Valve
RL: Rear left wheel
FR: Front right wheel
FL: Front left wheel
RR: Rear right wheel
RP: Return pump

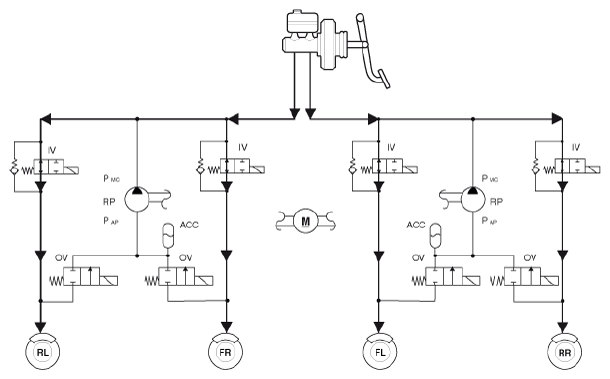

Increase Mode

	Inlet Valve (IV)	Outlet Valve (OV)	Return Pump
Operation	Open	Close	ON (Motor Speed Control)

G12602747

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

IV: Inlet Valve
OV: Outlet Valve
RL: Rear left wheel
FR: Front right wheel
FL: Front left wheel
RR: Rear right wheel
RP: Return pump
