Repair Procedures: Replacement
| Change | Oil Capacity | Standard Oil | |
|---|---|---|---|
| Normal use | Severe use | Gasoline 1.6: About 0.5L (0.13 U.S.gal., 0.53 U.S.qt, 0.44 Imp.qt.) |
API GL-5, SAE75W/85 Hypoid gear oil (SK HCT-5 75W/85 or equivalent) |
| No service required | 120000 km (80000 miles) | Gasoline 2.0: About 0.4L (0.11 U.S.gal, 0.42 U.S.qt, 0.35 Imp.qt.) |
|
Severe driving conditions
- Driving in dusty, rough roads
- Driving in mountains areas
- Driving for patrol car, taxi, commercial car or vehicle towing
- Driving over 170Km/h
* Transfer oil should be replaced if the transfer assembly is fall into the water
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

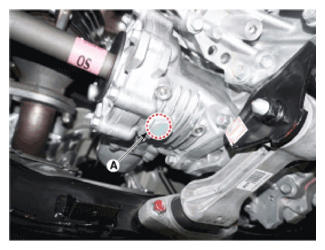

- Drain the transfer oil after loosening the drain plug (A).

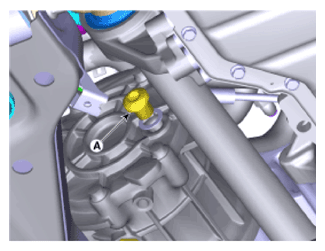

[Gasoline 1.6]

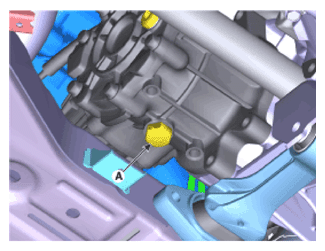

[Gasoline 2.0]
- Install the drain plug with a new gasket.
Tightening Torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

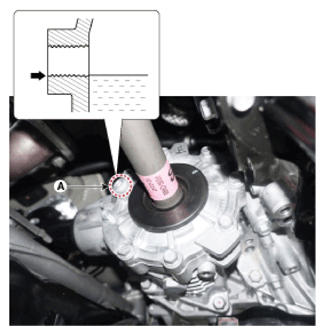

- Remove the filler plug (A) and then fill the transfer oil.
Standard Oil: Hypoid gear oil API GL-5, SAE75W/90 (SHELL HD AXLE OIL 75W/90 or equivalent)
Oil Capacity: Oil level must be up to fill the hole, if not, add oil until it runs over.
[Gasoline 1.6]
[Gasoline 2.0]
- Install the filler plug with a new gasket.
Tightening Torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
- Install the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
