Repair Procedures: Inspection
- Transfer Oil should be inspected and refilled every 60000 km (40000 mile)/4 year.
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

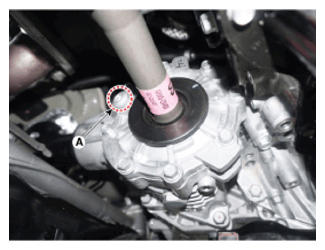

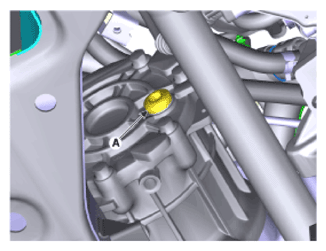

- Remove the oil filler plug (A).
[Gasoline 1.6]
[Gasoline 2.0]

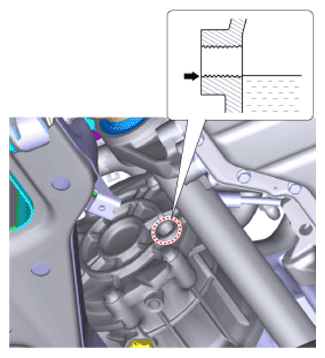

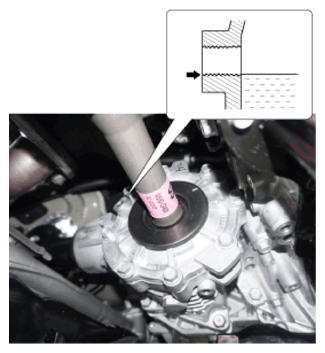

- Check the oil level.
- Oil level must be up to fill the hole, if not, add oil until it runs over.
[Gasoline 1.6]
[Gasoline 2.0]
- Install the oil filler plug with a new gasket.
Tightening Torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
- Install the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
