Repair Procedures: Removal

[Gasoline 1.6]

1. Remove the under cover.

   (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

2. Remove the subframe.

   (Refer to Suspension System - "SUBFRAME ")

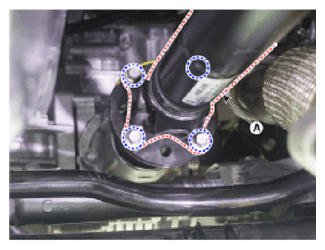

3. Remove the propeller shaft (A).

   Tightening Torque:

   49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.1 - 47.0 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

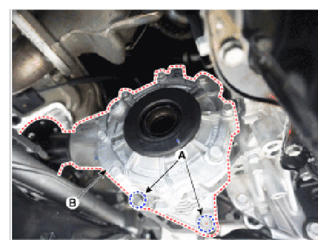

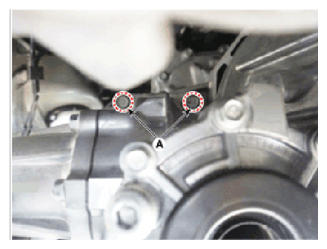

4. Remove the transfer assembly (B) after loosening the transfer mounting bolts (A).

   Courtesy of HYUNDAI MOTOR AMERICA

[Gasoline 2.0]

1. Remove the under cover.

   (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

2. Remove the driveshaft axle of right side.

   (Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

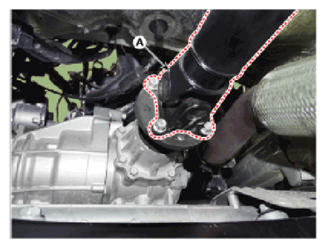

3. Remove the propeller shaft (A).

   Courtesy of HYUNDAI MOTOR AMERICA

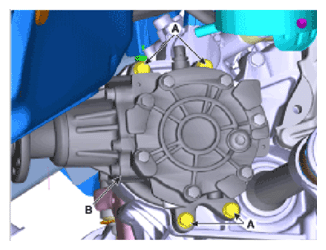

4. Remove the transfer assembly (B) after loosening the transfer mounting bolts (A).

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA
