Repair Procedures: Installation

  1. To install, reverse the removal procedures.
    NOTE:

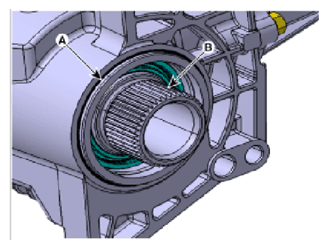

    1. Be careful not to damage the O-ring (A), If the O-ring is damaged, replace with a new one.
    2. Smear and cover splines (B) with molybdenum type high pressure grease.

      GREASE: SPL-1 or equivalent

      [Gasoline 1.6]

      G12605716Courtesy of HYUNDAI MOTOR AMERICA

      [Gasoline 2.0]

      G12605717Courtesy of HYUNDAI MOTOR AMERICA
    3. Install the propeller shaft to be near runout marking (transfer assembly 1ea, propeller shaft 1ea) each other.
      G12605718Courtesy of HYUNDAI MOTOR AMERICA
