Repair Procedures: Replacement
- Prior to replacing the 4WD ECU, check the 4WD ECU's clutch learning with the GDS tool.
(Refer to 4WD ECU - "REPAIR PROCEDURES ")
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the left side luggage side trim.
(Refer to Body - "LUGGAGE SIDE TRIM ")

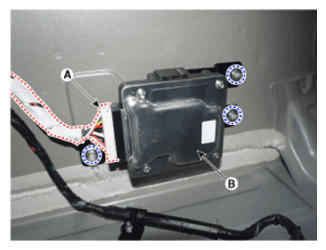

- Disconnect the connector (A).
- Loosen the nuts and then remove the 4WD ECU (B).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
