Repair Procedures: Installation

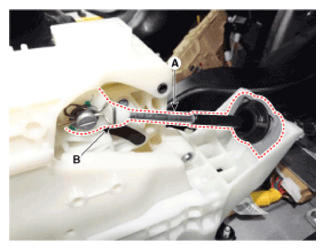

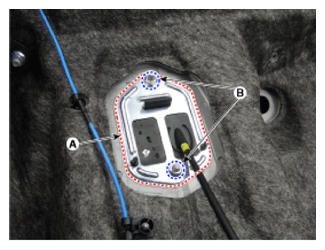

Install the shift cable (A) and then fix the snap pin (B).

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

Before installing, check that the shift lever and manual control lever are placed in the "N" position.

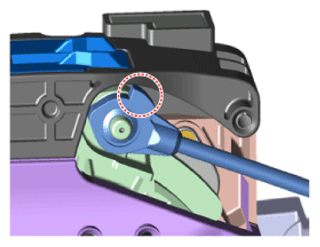

Insert the shift cable after checking the direction of projection to prevent wrong assembly.

Courtesy of HYUNDAI MOTOR AMERICA

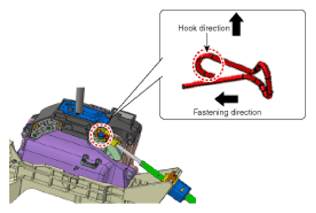

When assembling the snap pin, be careful about the correct direction.

Courtesy of HYUNDAI MOTOR AMERICA

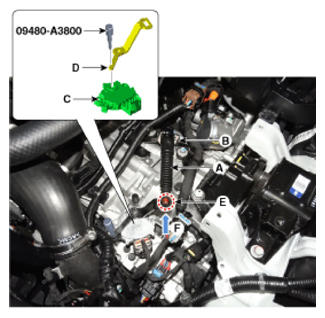

Install the shift cable (A) in the cable bracket (B).
Align the hole (C) in the manual control lever with the "N" position hole (D) of the inhibitor switch and then insert the inhibitor switch guide pin (SST No.:09480-A3800).
Lightly tighten the nut (E) after connected the shift cable (B) in the manual control lever.
Push shift cable (B) lightly to "F" direction displayed in image to eliminate free play of shift cable.
Tighten the nut (E) with the specified torque.
Tightening torque

9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the inhibitor switch guide pin (SST No.:09480-A3800) from the hole.
Install the battery and tray.
(Refer to Engine Electrical System - "BATTERY ")
Install the ECM.
(Refer to Engine Control System - "ENGINE CONTROL MODULE (ECM) ")
Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
CAUTION:
- Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
