Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guide if necessary.

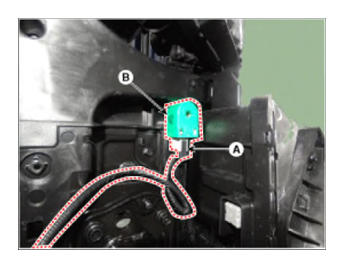

  3. Remove the buzzer (B) after disconnect the connector (A)
    G13193491Courtesy of HYUNDAI MOTOR AMERICA
