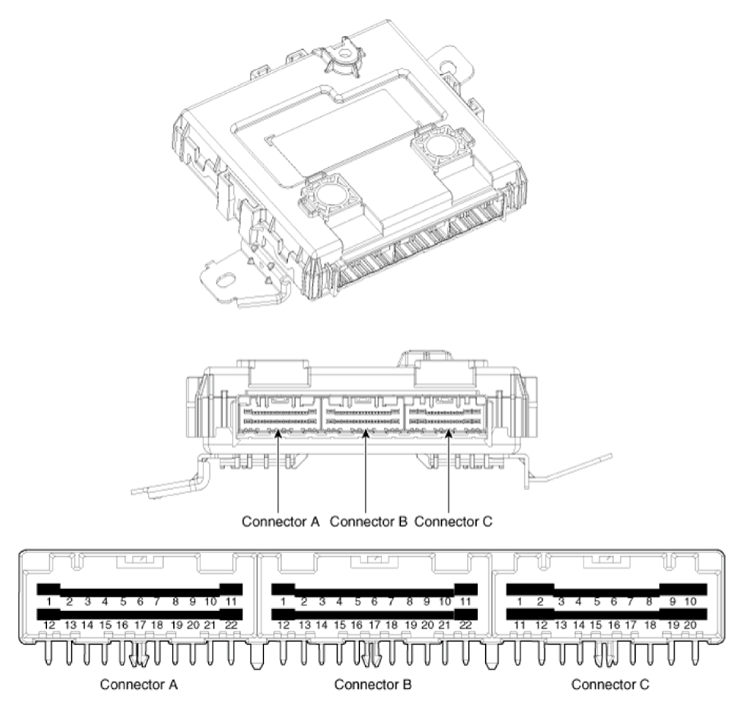

| 1 |
BAT (+)_Signal |
IGN 2_Relay output |
Immobizer antenna_Power |
| 2 |
BAT (+)_Power |
IGN 1_Relay output |
Wheel speed sensor |
| 3 |
Interior antenna 1 GND_output |
- |
SSB switch1 |
| 4 |
Bumper antenna GND_output |
- |
EV Ready blackup signal_Input |
| 5 |
Interior antenna 2 GND_output |
ESCL CAN |
ESCL Unlock switch |
| 6 |
Assist door antenna GND_output |
EMS CAN |
- |
| 7 |
Trunk antenna GND_output |
B-CAN (High) |
Brake switch |
| 8 |
Driver's door antenna GND_output |
B-CAN (Low) |
IG2 |
| 9 |
- |
C-CAN (Low) |
IG1 |
| 10 |
SSB Illumination (+) |
C-CAN (High) |
Starter relay |
| 11 |
Exterior buzzer |
- |
Immobilizer antenna_GND |
| 12 |
ESCL (+) |
ACC_Relay output |
"P" position switch |
| 13 |
- |
- |
SSB switch2 |
| 14 |
Interior antenna 1 power_output |
GND |
Driver's toggle button switch_signal |
| 15 |
Bumpper antenna power_output |
- |
Passenger toggle button switch_signal |
| 16 |
Interior antenna 2 power_output |
SSB LED (ACC) |
Starter relay feedback signal |
| 17 |
Trunk antenna power_output |
SSB LED (IGN) |
- |
| 18 |
Assist door antenna power_output |
- |
ACC signal |
| 19 |
Assist door antenna power_output |
- |
- |
| 20 |
- |
- |
GND power |
| 21 |
ESCL Enable signal |
- |
|
| 22 |
ESCL Enable GND |
WCM |
