Components And Components Location: Components

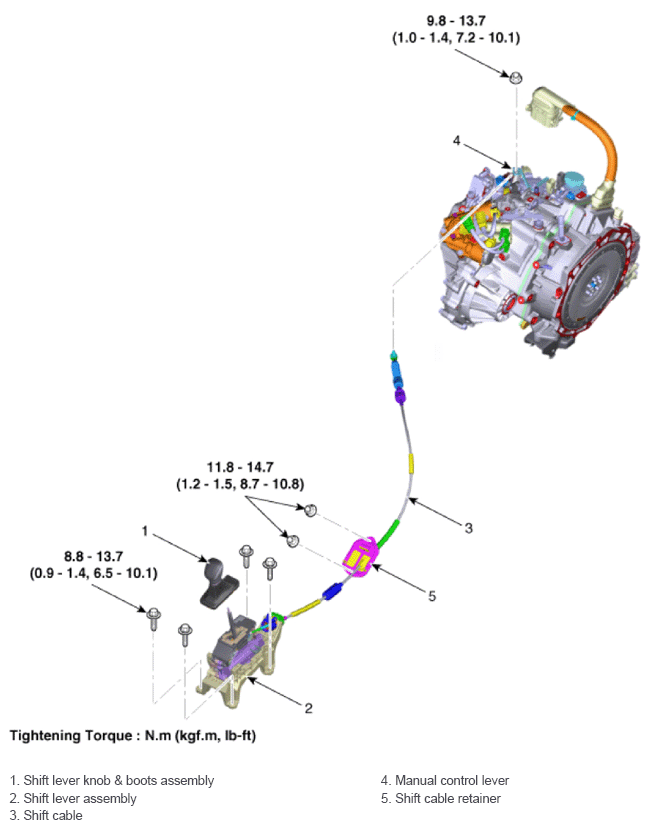

Fig 1: Shift Cable Components Location With Torque Specification

G13563387

Courtesy of HYUNDAI MOTOR AMERICA
