Components And Components Location: Components

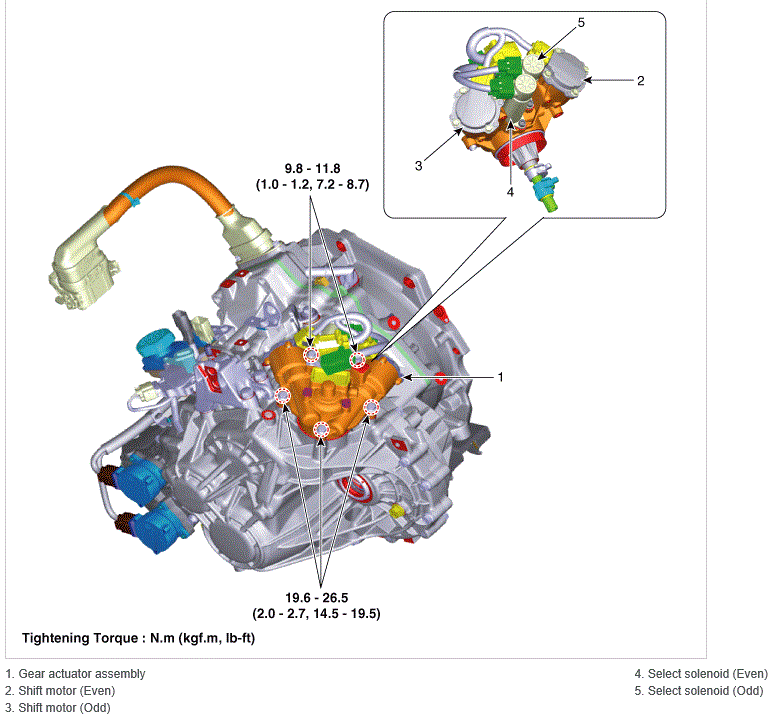

Fig 1: Gear Actuator Assembly Components Location With Torque Specification

G13563342

Courtesy of HYUNDAI MOTOR AMERICA
