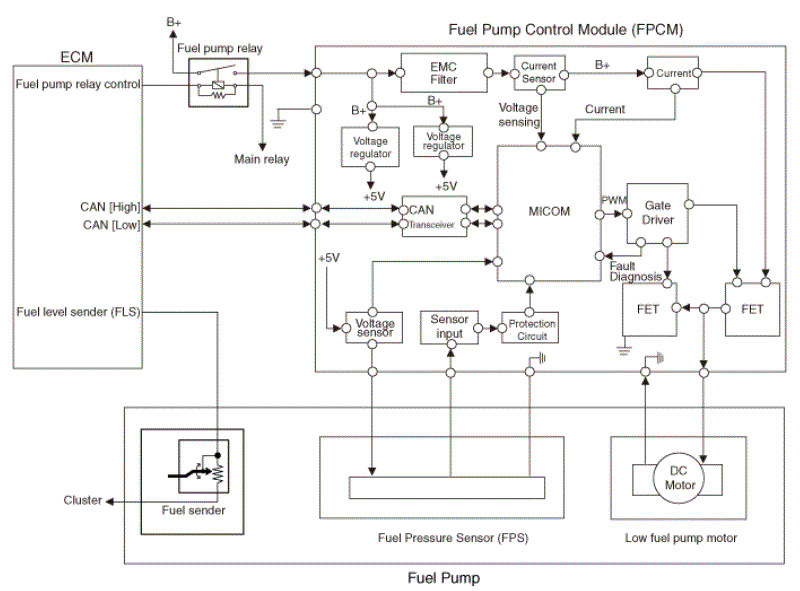

Home >> Hyundai >> 2021 >> Ioniq Plug-In Hybrid SE >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System (PHEV) >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
