Components And Components Location: Components

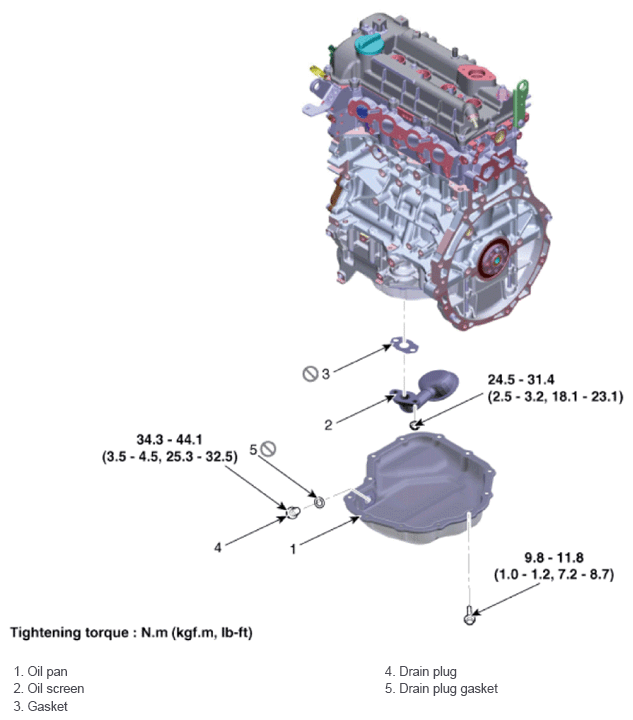

Fig 1: Oil Pan Components Location With Torque Specification

G13562651

Courtesy of HYUNDAI MOTOR AMERICA
