Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")

  3. Remove the smart key unit (A) after disconnecting the connectors (B) and loosening the bolt and nut.

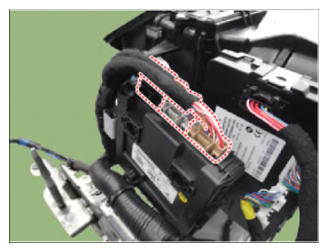

    G13564713Courtesy of HYUNDAI MOTOR AMERICA

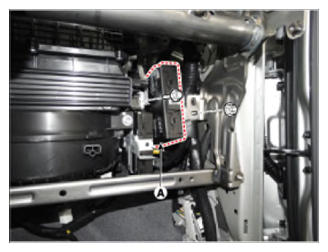

    G13564714Courtesy of HYUNDAI MOTOR AMERICA
