Repair Procedures: Installation

  1. To install, reverse the removal procedure.
    NOTE:
    • Before installing, check that the shift lever and manual control lever are placed in the "N" position.
    CAUTION:

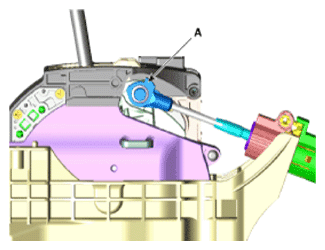

    • When assembling shift cable, the projection (A) must face upwards.
      G13563384Courtesy of HYUNDAI MOTOR AMERICA

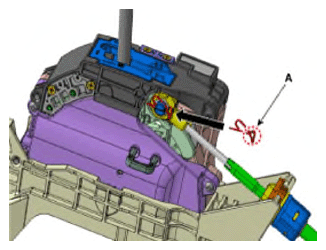

    • When assembling the snap pin, be careful about the correct direction.
      • The band portion (A) must point to the front of the vehicle.
      • The band portion (A) must point outwards.
        G13563385Courtesy of HYUNDAI MOTOR AMERICA

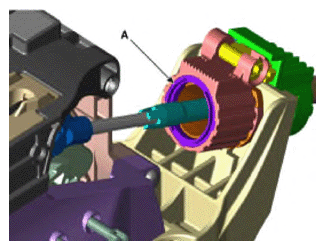

    • After installing the shift cable socket, check portion (A) to see if it projects outwards from the cap.
      G13563386Courtesy of HYUNDAI MOTOR AMERICA
