Home >> Hyundai >> 2021 >> Ioniq Plug-In Hybrid Limited >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Double Clutch Transmission Control System (PHEV) >> Inhibitor Switch >> Repair Procedures >> Inspection >> Inspection Flow

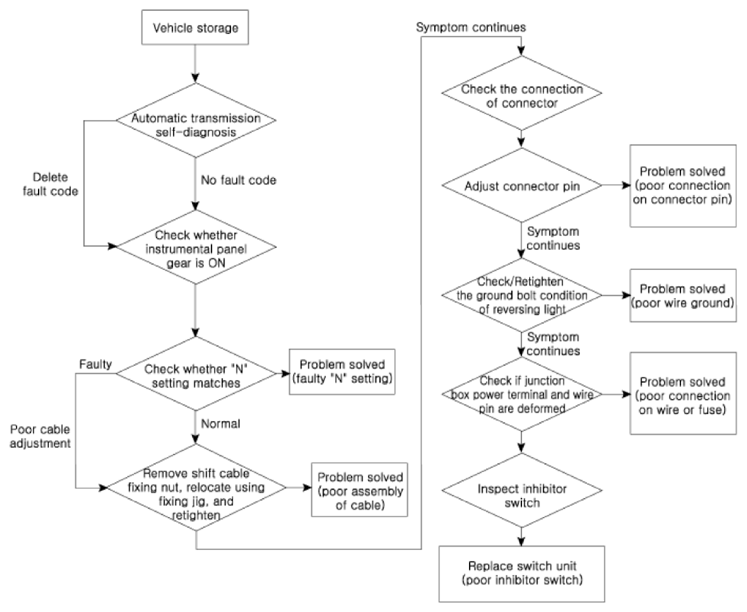

Inspection Flow

G13563366Courtesy of HYUNDAI MOTOR AMERICA
