Components And Components Location: Components

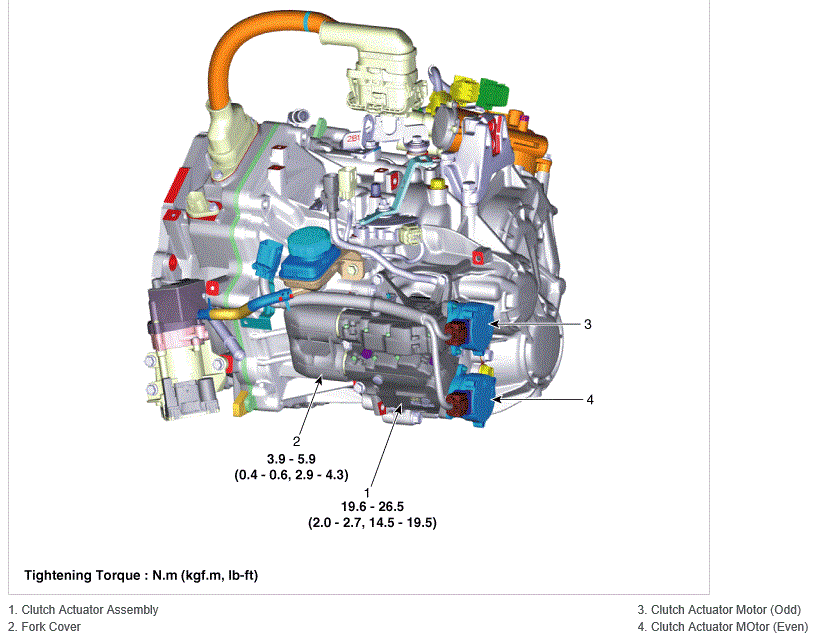

Fig 1: Clutch Actuator Assembly Components Location With Torque Specification

G13563310

Courtesy of HYUNDAI MOTOR AMERICA
