Engine Clutch/Motor Resolver Adaptation

  1. Turn the ignition switch OFF.
  2. Connect the KDS/GDS to DataLink Connector (DLC).

    Turn the ignition switch ON.

  3. Select "Vehicle, Model year, Engine, System".
  4. Select "Vehicle S/W Management".

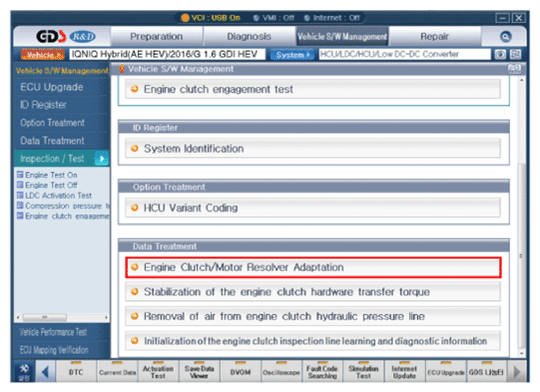

  5. Select "Engine clutch/motor resolver adaptation".
    G13565646Courtesy of HYUNDAI MOTOR AMERICA
