Repair Procedures: Removal
WARNING:
- Be sure to read and follow the "GENERAL SAFETY INFORMATION & CAUTION " before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
- Be sure to read and follow the "HIGH VOLTAGE SHUT-OFF PROCEDURES " before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
- Shut off the High Voltage circuit.
(Refer to Hybrid Control System - "HIGH VOLTAGE SHUT-OFF PROCEDURES ")

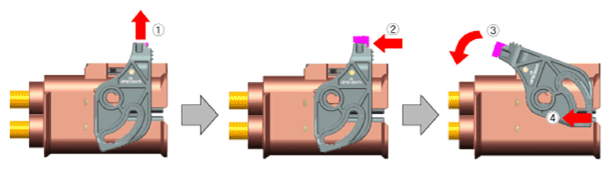

- Disconnect the motor power cable connector (A) and HSG power cable connector (B) after loosening the mounting bolts.
- Disconnect the power cable (A) and inverter power cable (B) from the HPCU.
Information
- Remove the inverter power cable in the following order.
- Remove the DC fuse cover (A) after loosening the mounting bolt.
DC Fuse cover installation bolt:
4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb-ft)
- Remove the DC fuse seal cover (A).
- Remove the DC fuse (A) from the HPCU after loosening the mounting bolt.
DC Fuse installation bolt:
9.3 - 10.4 N.m (0.95 - 1.06 kgf.m, 6.9 - 7.7 lb-ft)
