CVVT Oil Control Valve (Exhaust)

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air cleaner assembly

    (Refer to Engine Mechanical System - "AIR CLEANER ")

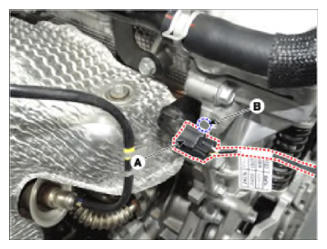

  3. Disconnect the CVVT oil control solenoid (A).
  4. Remove the installation bolt (B), and then remove the CVVT oil control solenoid from the engine.
    G13563066Courtesy of HYUNDAI MOTOR AMERICA
